Belt Conveyor Guarding

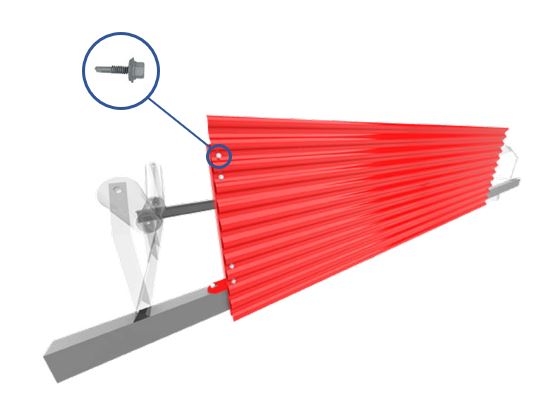

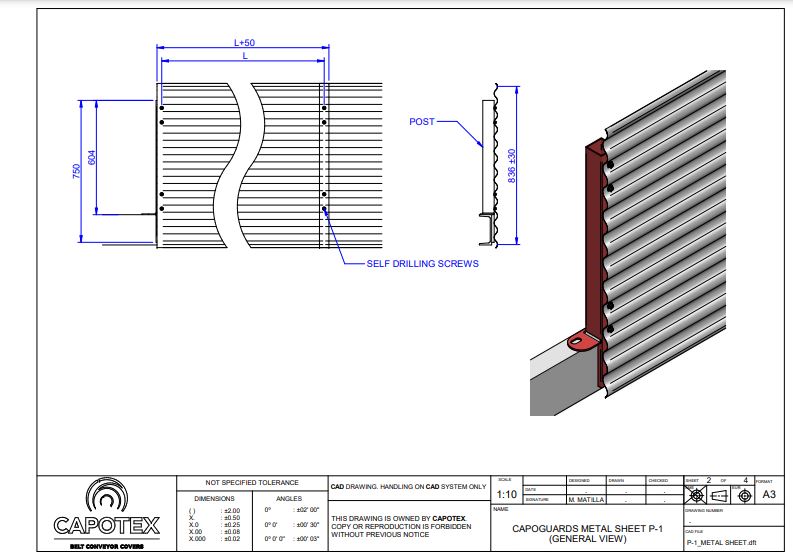

Conveyor charge belt metal sheet guard with self-tapping screw (P1)


  • They ensure consistency and compliance of regulations.
  • Due to innovation in their customized solutions, they ensure a correct installation.
  • It is one of the most economical upper side guards option.
  • Although it is considered a fixed guard, it can be disassembled for maintenance operations.
  • This guard is screwed to a post that is screwed to the frame.


  • ZM 300-310
  • Galvanized Steel
  • Pre-lacquered Steel
  • HPS 200 High Performance Steel
  • Stainless Steel 304
  • Stainless Steel 316
  • Fiber reinforced polyester
  • Aluminium

Technical specifications:

  • Length in maximum sections up to 3 meters.
  • Height up to 0.8 meters.
  • System weight 6.5 kg / meter.
