Conveyor belt side guard

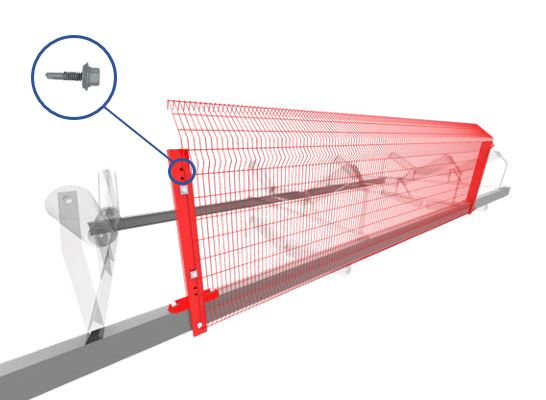

Conveyor charge belt side guard metal mesh with self tapping screw (P1)

Characteristics:

  • This conveyor belt side guard ensure consistency and compliance of the regulations.
  • Due to innovation in their customized solutions, they ensure a correct installation.
  • It is one of the most economical upper side – charge belt – guard options.
  • Although they are considered a fixed guards, it can be disassembled for maintenance operations.
  • This Guard is screwed to a post that is screwed to the frame.

Materials:

  • Hot Dip Galvanized.
  • Stainless Steel 304.
  • Stainless Steel 316.

Technical specifications:

  • Unit length from 1.5 to 2.4 meters.

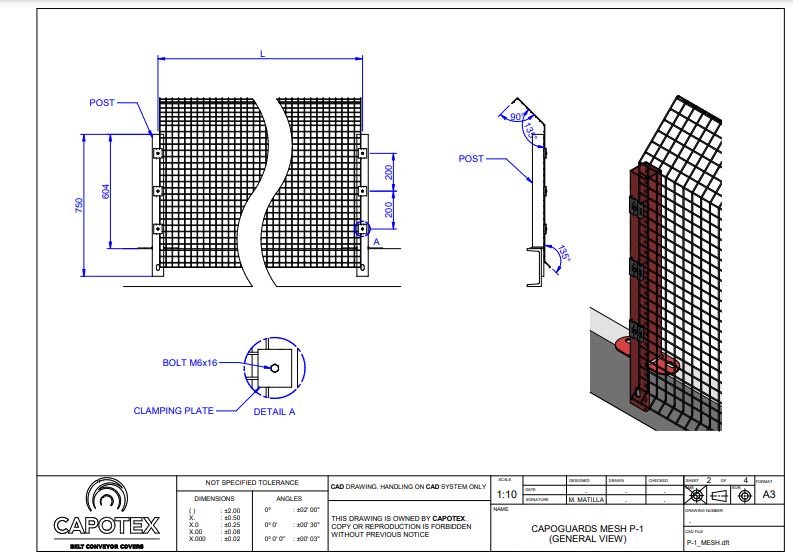

  • Height according to drawing.
  • System weight 4.7 kg/meter.
  • Standard mesh size 33×33 wire 3 mm (other sizes on request).
